Step 1 - Phonecat Backend Using Web Api and TypeProviders

This is step 1 of my blog series on Web Application Development in Fsharp using ASP.NET MVC

In the last blog post we have created the basic home page of phone cat with the placeholders and in this post we are going it wire the home page with the backend web apis.

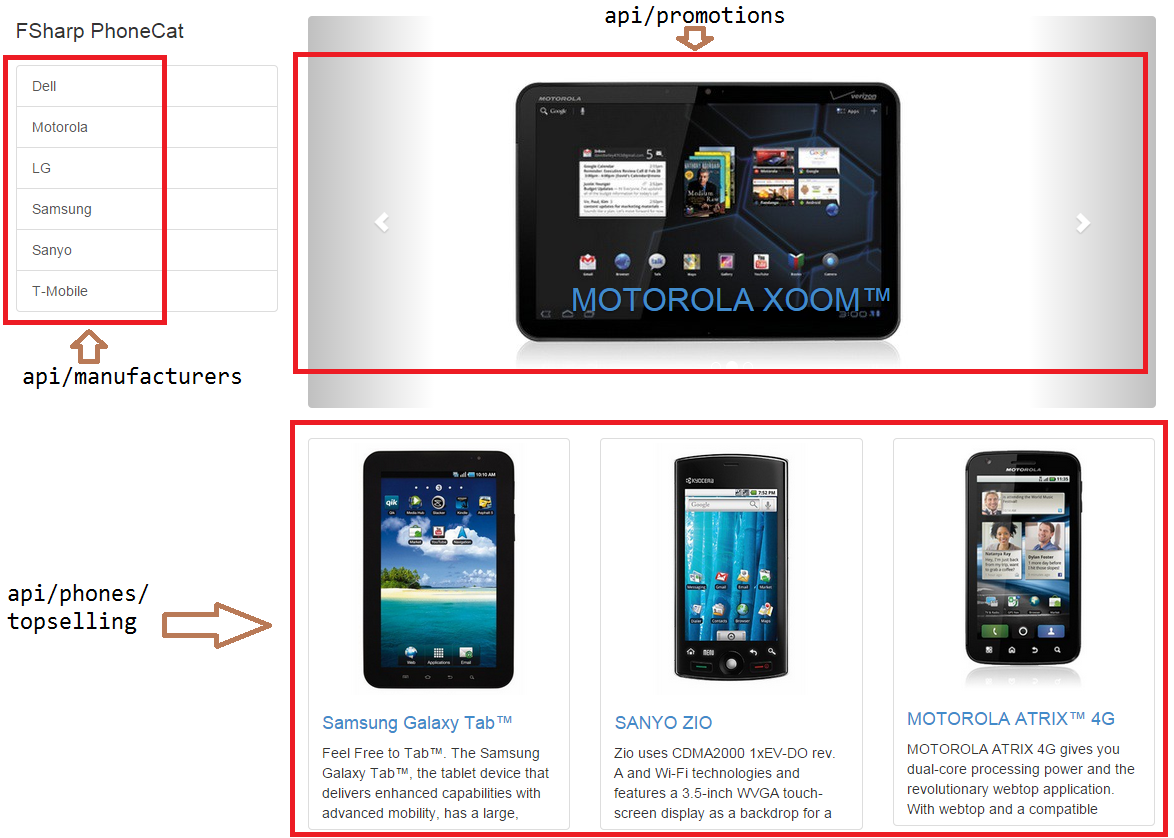

As the above screenshot indicates we are going to develop three web api endpoints which serve the data to the front-end and we are going to use the existing json data available in angular-phonecat repository as our backend data store.

Initially I’ve planned to include TDD steps in this post but to keep it simple I am ignoring it. If you are interested in the tests that I’ve written check the source code.

Promotions Api

Let’s start with the promotions api which serves the data of three recently launched mobile phones. The first step is to create an ApiController called “PromotionsController”. You can create it by right clicking on the “Controllers” directory in the Web project and select Add -> Source file. In the dialog box, name it as “PromotionsController”

After creating, update the controller with the dependencies as mentioned below

1
2
3
4
5
6
7
8
9
10
11
12

namespace Web.Controllers

open System.Web.Http
open PhoneCat.Domain

[<RoutePrefix("api/promotions")>]
type PromotionsController
  (
    getPromotions : seq<PhoneIndex> -> seq<PromotionPhone>,
    phoneIndexes: seq<PhoneIndex>
  ) =
  inherit ApiController()

The PromotionsController has two dependencies.

  • getPromotions is a function a that takes a sequence of a domain model PhoneIndex and returns the sequence of domain model PromotionPhone which represents the phones that are recently launched.

  • phoneIndexes is a sequence of domain model PhoneIndex that represents the phones available in the backend data store.

These domain models currently not exists, so add them in the domain project as mentioned below

Right click on the domain project and select Add -> Source file. In the dialog box, name it as “Promotions”. It creates a fsharp module with the name Promotions and add the PromotionPhone domain model

1
2
3
4
5
6
7
8
9

namespace PhoneCat.Domain
[<AutoOpen>]
module Promotions =

  type PromotionPhone = {
    Id : string
    ImageUrl : string
    Name : string
  }

Similarly, create an another source file called Production and add the domain model PhoneIndex

1
2
3
4
5
6
7
8
9
10

namespace PhoneCat.Domain

[<AutoOpen>]
module Production =

  type PhoneIndex =
    { Id : string
      Name : string
      ImageUrl : string
      Age : int }

The Age property represents the age of the phone since its launch (so lower is younger!). Now the domain models are ready, the next step is to create an end point to expose it.

Let’s add a action method in PromotionsController which does the same

1
2
3

  [<Route("")>]
  member this.Get () =
    getPromotions phoneIndexes

The scaffolding is ready and the next step is to add the domain method getPromotions which does the actual business logic of giving recently launched phones.

Add the getPromotions function in the Promotions file as below

1
2
3
4

let getPromotions (phoneIndexes : seq<PhoneIndex>) =
  phoneIndexes
  |> Seq.filter (fun phone -> phone.Age < 3)
  |> Seq.map (fun phone -> {Id = phone.Id; Name = phone.Name; ImageUrl = phone.ImageUrl})

The getPromotions just filters the phones with the age less than 3 and map them to the corresponding PromotionPhone types.

Now its time to get the actual data from the data store. As I have mentioned earlier we will be using angular-phonecat repository as our data store. To access the data we will be using JsonTypeProvider.

In the DataAccess project install the nuget package FSharp.Data and add a source file TypeProviders. Then update it with the type provider for Phone Index

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

namespace PhoneCat.DataAccess
open FSharp.Data
open PhoneCat.Domain

[<AutoOpen>]
module TypeProviders =

  [<Literal>]
  let private samplePhoneIndexes = """
  [{
      "age": 1,
      "id": "id0",
      "imageUrl": "id0.jpg",
      "name": "Name0",
      "snippet": "Sample Snippet0"
  },{
      "age": 2,
      "id": "id1",
      "imageUrl": "id1.jpg",
      "name": "Name1",
      "snippet": "Sample Snippet2"
  }]
  """

  type PhoneIndexTypeProvider = JsonProvider<samplePhoneIndexes>

  let ToPhoneIndex (phoneIndex : PhoneIndexTypeProvider.Root) =
    { Id = phoneIndex.Id; Name = phoneIndex.Name; Age = phoneIndex.Age; ImageUrl = phoneIndex.ImageUrl }

The ToPhoneIndex is a utility function which converts the data store model PhoneIndexTypeProvider.Root to the domain model PhoneIndex

Now we got the type provide for PhoneIndex, the next step is populating it from the github repository. To do that add a source file GitHubRepository and update it as below

1
2
3
4
5
6
7
8
9
10
11

namespace PhoneCat.DataAccess
open PhoneCat.Domain

module GitHubRepository =

  [<Literal>]
  let private gitHubRepoUrl = "https://raw.githubusercontent.com/angular/angular-phonecat/master/app/phones/"

  let private phoneIndexes = PhoneIndexTypeProvider.Load(gitHubRepoUrl + "phones.json")

  let getPhoneIndexes () = phoneIndexes

That’s it! just three line of code to get the data from the angular-phonecat repo and map to the equivalent strongly typed models

Composition Root

Now we need to wire up the controller with the domain and the data access. We can use a Dependency Injection Container to achieve it. In fact it used to be my default decision. But after reading this wonderful blog post by Mark Seeman I have actually started rethinking about dependency injection. In this sample application we are going to use the Composition Root as suggested by Mark Seeman.

In the Web project create a source file with the name Infrastructure and add the following composition root

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

namespace PhoneCat.Web

open System
open System.Web.Http.Dispatcher
open System.Web.Http.Controllers
open Web.Controllers
open PhoneCat.DataAccess
open PhoneCat.Domain

module Infrastructure =

  type CompositionRoot
    (
      phoneIndexes : seq<PhoneIndexTypeProvider.Root>
    ) =
    interface IHttpControllerActivator with

      member this.Create(request, controllerDescriptor, controllerType) =

        let phoneIndexes' = phoneIndexes |> Seq.map TypeProviders.ToPhoneIndex

        if controllerType = typeof<PromotionsController> then
            let promotionsController = new PromotionsController(getPromotions, phoneIndexes')
            promotionsController :> IHttpController
        else
            raise <| ArgumentException((sprintf "Unknown controller type requested: %A" controllerType))

We have actually created a custom implementation of IHttpControllerActivator as mentioned here which takes care of initializing the controllers by wiring the data store and the domain functions with the controller

The only pending task is tell ASP.NET Web Api to use this composition root. Update the Global.asax.fs file as below

1
2
3
4
5
6
7

static member RegisterWebApi(config: HttpConfiguration) =

  // existing configuration will be here

  // Additional Web API settings
  let phoneIndexes = GitHubRepository.getPhoneIndexes()
  config.Services.Replace(typeof<IHttpControllerActivator>, CompositionRoot(phoneIndexes))

We have done an optimization by getting the phone indexes from the github when the application is starting, so that any requests to the application doesn’t get the data from github (typical enterprise performance improvement!).

Manufacturers Api

We are going to create the Manufacturers Api in the same way as Promotions Api. Let’s start from ManufacturersController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

namespace Web.Controllers

open System.Web.Http
open PhoneCat.Domain

type ManufacturerViewModel = { Name : string }

[<RoutePrefix("api/manufactures")>]
type ManufacturersController
  (
    getManufacturerNames : seq<Phone> -> seq<ManufacturerName>,
    phones : seq<Phone>
  ) =
  inherit ApiController()

  [<Route("")>]
  member this.Get () =
    getManufacturerNames phones
    |> Seq.distinct
    |> Seq.map (fun name -> {Name = ManufacturerName.ToString name})

As PromotionsController, ManufacturersController has also two dependencies.

  • getManufacturerNames is a function takes a sequence of domain model Phone and returns the sequence of domain model ManufacturerName which represents the manufacturer names of the given phones.

  • phones is a sequence of domain model “`Phone“ that represents the phones available in the backend data store

The Get method in the ManufacturersController returns the manufacturer names for the given phones

The ManufacturerViewModel is just a DTO that is used to share the data across the wire.

The next step is to add the domain models. In the Production file of Domain project add the following

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

type ManufacturerName =

  Samsung | Motorola | Dell | LG | TMobile | Sanyo | Unknown

  static member ToString = function
      | Samsung -> "Samsung"
      | Motorola -> "Motorola"
      | Dell -> "Dell"
      | LG -> "LG"
      | TMobile -> "T-Mobile"
      | Sanyo -> "Sanyo"
      | Unknown -> "Unknown"

  static member ToManufacturerName (name : string) =
      match name.ToLower() with
      | n when n.Contains("samsung") -> Samsung
      | n when n.Contains("motorola") -> Motorola
      | n when n.Contains("dell") -> Dell
      | n when n.Contains("lg") -> LG
      | n when n.Contains("t-mobile") -> TMobile
      | n when n.Contains("sanyo") -> Sanyo
      | n when n.Contains("nexus") -> Samsung
      | _ -> Unknown

type Phone =
  { Id : string
    Name : string
    Description : string
    ImageUrl : string }

As the backend data-store doesn’t directly gives the manufacturer name, we will be adding two static members that derives the manufacturer name from the phone name. The ToString function translates to the domain model to its equivalent string version

After defining the domain models, add the business logic for the getting the manufacturer names from the phone in the new source file Phones of the Domain project.

1
2
3
4
5
6
7
8

namespace PhoneCat.Domain

[<AutoOpen>]
module Phones =

  let getManufacturerNames (phones : seq<Phone>) =
    phones
    |> Seq.map (fun p -> ManufacturerName.ToManufacturerName p.Name)

The getManufacturerNames is a straight forward function that map given the phones to its equivalent manufacture names.

The next step would be fetching the phones from the data-store.

Let’s start by defining a type provider for the phone. Update the TypeProviders module in the DataAccess project as below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

[<Literal>]
let private samplePhoneJson = """
{
  "additionalFeatures": "Trackball",
  "android": {
      "os": "Android 2.2",
      "ui": ""
  },
  "availability": [
      "Sprint"
  ],
  "battery": {
      "standbyTime": "",
      "talkTime": "4 hours",
      "type": "Lithium Ion (Li-Ion) (1130 mAH)"
  },
  "camera": {
      "features": [
          "Video"
      ],
      "primary": "3.2 megapixels"
  },
  "connectivity": {
      "bluetooth": "Bluetooth 2.1",
      "cell": "CDMA2000 1xEV-DO Rev.A",
      "gps": true,
      "infrared": false,
      "wifi": "802.11 b/g"
  },
  "description": "Zio uses CDMA2000 1xEV-DO rev",
  "display": {
      "screenResolution": "WVGA (800 x 480)",
      "screenSize": "3.5 inches",
      "touchScreen": true
  },
  "hardware": {
      "accelerometer": true,
      "audioJack": "3.5mm",
      "cpu": "600MHz Qualcomm MSM7627",
      "fmRadio": false,
      "physicalKeyboard": false,
      "usb": "USB 2.0"
  },
  "id": "sanyo-zio",
  "images": [
      "img/phones/sanyo-zio.0.jpg",
      "img/phones/sanyo-zio.1.jpg",
      "img/phones/sanyo-zio.2.jpg"
  ],
  "name": "SANYO ZIO",
  "sizeAndWeight": {
      "dimensions": [
          "58.6 mm (w)",
          "116.0 mm (h)",
          "12.2 mm (d)"
      ],
      "weight": "105.0 grams"
  },
  "storage": {
      "flash": "130MB",
      "ram": "256MB"
  }
}

"""

type PhoneTypeProvider = JsonProvider<samplePhoneJson>

let ToPhone (phone : PhoneTypeProvider.Root) =
    { Id = phone.Id; Name = phone.Name; Description = phone.Description; ImageUrl = phone.Images.[0] }

Like ToPhoneIndex utility function, ToPhone converts the data store model PhoneTypeProvider.Root to the domain model Phone

Unlike the phone index, angular-phonecat repository stores the details of each phones in a seperate json file with the naming convention of {phoneId}.json. So, in order to get the details of all the phones, we need to fire multiple requests to get the details. Thanks to fsharp async workflow we can easily pull all the data parallelly and populate the strongly typed domain models from them.

Update the GitHubRepository module with the code to populate the data from the data store.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

namespace PhoneCat.DataAccess
open PhoneCat.Domain

module GitHubRepository =

  [<Literal>]
  let private gitHubRepoUrl = "https://raw.githubusercontent.com/angular/angular-phonecat/master/app/phones/"

  let private phoneIndexes = PhoneIndexTypeProvider.Load(gitHubRepoUrl + "phones.json")

  let private phoneIds = phoneIndexes |> Seq.map (fun p -> p.Id)

  let private pMap ids =
      seq {for id in ids -> async { return id, PhoneTypeProvider.Load(gitHubRepoUrl + id + ".json") }}
      |> Async.Parallel
      |> Async.RunSynchronously

  let private phones = pMap phoneIds |> Map.ofSeq

  let getPhoneIndexes () = phoneIndexes

  let getPhones () = phones |> Seq.map (fun p -> p.Value)

Expressiveness is one of the reason behind my fsharp addiction. Just see the above code we have done some much thing with just few lines of code. We have fetched the details of all the phones using their ids from phone index and created an in-memory map.

The getPhones function returns the strongly typed PhoneTypeProvider models from the in-memory map.

The last thing is to wire up all the things and create the ManufacturersController. Update the CompositionRoot type in the Infrastructure module with the below code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

type CompositionRoot
  (
    phones : seq<PhoneTypeProvider.Root>,
    phoneIndexes : seq<PhoneIndexTypeProvider.Root>
  ) =
  interface IHttpControllerActivator with
  member this.Create(request, controllerDescriptor, controllerType) =

    let phones' = phones |> Seq.map TypeProviders.ToPhone
    let phoneIndexes' = phoneIndexes |> Seq.map TypeProviders.ToPhoneIndex

    if controllerType = typeof<PromotionsController> then
        let promotionsController =
          new PromotionsController(getPromotions, phoneIndexes')
        promotionsController :> IHttpController

    else if controllerType = typeof<ManufacturersController> then
        let manufacturersController =
          new ManufacturersController(getManufacturerNames, phones')
        manufacturersController :> IHttpController
    else
        raise <| ArgumentException((sprintf "Unknown controller type requested: %A" controllerType))

And update the Global.asax.fs as below

1
2
3
4
5
6
7
8

static member RegisterWebApi(config: HttpConfiguration) =

  // existing configuration will be here

  // Additional Web API settings
  let phones = GitHubRepository.getPhones()
  let phoneIndexes = GitHubRepository.getPhoneIndexes()
  config.Services.Replace(typeof<IHttpControllerActivator>, CompositionRoot(phones, phoneIndexes))

Top Selling Phones Api

Create PhonesController in the Web project and add the api to return the top selling phones

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

namespace Web.Controllers

open System.Web.Http
open PhoneCat.Domain

[<RoutePrefix("api/phones")>]
type PhonesController
  (
    getTopSellingPhones : int -> seq<Phone> -> seq<Phone>,
    phones : seq<Phone>
  ) =
  inherit ApiController()

  [<Route("topselling")>]
  member this.GetTopSelling () =
    getTopSellingPhones 3 phones

The getTopSellingPhones picks given count of phones from the given phones and return them.

In the Phones module of Domain project add the function getTopSellingPhones

1
2
3
4
5
6

let getTopSellingPhones (phonesSold : seq<PhoneSold>) phoneCount (phones : seq<Phone>) =
  phonesSold
  |> Seq.map (fun p -> p.Quantity, (phones |> Seq.find (fun p' -> p'.Id = p.Id)))
  |> Seq.sortBy (fun x -> -(fst x))
  |> Seq.take phoneCount
  |> Seq.map snd

The PhoneSold domain model represents how much quantity of each phone has been sold. The getTopSellingPhones sorts the given phones in the descending order based on the quantity being sold and return the given count of the phones from the sorting result

Right now the PhoneSold domain model is not added. So add them in the new module Purchases in the Domain project as below

1
2
3
4
5
6
7
8

namespace PhoneCat.Domain

[<AutoOpen>]
module Purchases =
  type PhoneSold = {
    Id : string
    Quantity : int
  }

The angular data-store doesn’t provide quantity sold information, so we need to get it from somewhere else. To keep it simple, we are going add an InMemoryInventory in DataAccess project as below

1
2
3
4
5
6
7
8
9
10
11
12

namespace PhoneCat.DataAccess
open PhoneCat.Domain

module InMemoryInventory =
  let getPhonesSold () = [
    { Id = "motorola-xoom-with-wi-fi"; Quantity = 10}
    { Id = "motorola-atrix-4g"; Quantity = 24}
    { Id = "nexus-s"; Quantity = 4}
    { Id = "samsung-galaxy-tab"; Quantity = 41}
    { Id = "sanyo-zio"; Quantity = 31}
    { Id = "motorola-xoom"; Quantity = 6}
  ]

As previous api’s we need wire things up and create the controller in the CompositeRoot

1
2
3
4

 else if controllerType = typeof<PhonesController> then
  let getTopSellingPhones = Phones.getTopSellingPhones (InMemoryInventory.getPhonesSold())
  let phonesController = new PhonesController(getTopSellingPhones, phones')
  phonesController :> IHttpController

We have used partial application of the Phones.getTopSellingPhones function here. Its signature is seq<PhoneSold> -> int -> seq<Phone> -> seq<Phone>
but the controller expects the function with the signature int -> seq<Phone> -> seq<Phone>.

The expression

1

let getTopSellingPhones = Phones.getTopSellingPhones (InMemoryInventory.getPhonesSold())

actually does this.

Front-End

As front-end is out of the scope of this blog post I am not covering it here. I’ve actually developed it using knockout.js.

Summary

We have covered a quite a large ground here by creating three web-api endpoints in fsharp using Web Api 2. In the later posts we will be adding error handling and making it robust. The source code for this step can be found in the github repository

Comments
