Step-7 Validation and Error Handling using ROP

This is step 7 of my blog series on Web Application Development in Fsharp using ASP.NET MVC

In the last blog post we have seen how to register a new user using the Asp.Net Identity Management framework. Validating the incoming data before updating the backend datastore and handling error while saving are typical tasks in a web application. In this blog post we are going to see how to achieve these things in a web application written in fsharp. As mentioned in the last blog post we will be adding validation logic for new user registration using Railway oriented Programming aka ROP.

Cleanup

Before adding the validation, let’s do some cleanup and make it ready for adding validation.

Create a new source file UserStorage in the Identity project and move the user manager creation logic from MvcInfrastructure to here.

[<AutoOpen>]
module UserStorage =

  let createUserManager () =
    let userStore = new UserStore<User>(new UserDbContext())
    let userManager = new UserManager<User>(userStore)
    let userValidator = new UserValidator<User>(userManager)
    userValidator.AllowOnlyAlphanumericUserNames <- false
    userManager.UserValidator <- userValidator
    userManager

Create a Request record type in Users that represents the request for creating a new user

type CreateUserRequest = {Name: string; Password: string; Email : string}

Then move the user creation logic from Authentication Controller’s Register action method to UserStorage and update it to use CreateUserRequest.

let createUser (userManager : UserManager<User>) createUserRequest =

  let user = new User(Name = createUserRequest.Name,
                      UserName = createUserRequest.Email,
                      Email = createUserRequest.Email)

  userManager.Create(user, createUserRequest.Password)

Finally, update the Register action method in AuthenticationController to use the above function

[<HttpPost>]
[<ValidateAntiForgeryToken>]
member this.Register(registerViewModel : RegisterViewModel) : ActionResult =
  let createUserRequest : CreateUserRequest = {
    Name = registerViewModel.Name;
    Email = registerViewModel.Email;
    Password = registerViewModel.Password
  }
  let userCreateResult = Users.createUser userManager createUserRequest
  if (userCreateResult.Succeeded) then
    signin userManager base.Request user
    this.RedirectToAction("Index", "Home") :> ActionResult
  else
    userCreateResult.Errors
    |> Seq.iter(fun err -> this.ModelState.AddModelError("", err))
    this.View(registerViewModel) :> ActionResult

With this we are wrapping the cleanup work and all set for adding validation.

Adding Validation

The first step in ROP is defining the “two tracks”. The track Success represents a successful operation (here its validation) and the other track Failure represents the failure while executing an operation. Usually these “two tracks” will be defined using a discriminated union.

Create a source file Rop in the Identity project and update it as below

module Rop =
  type Error = {Property : string; Message : string}
  type Result<'a> =
    | Success of 'a
    | Failure of Error

The Error type provides the metadata associated with the error.

Let’s start writing validation rules from validating Name. Create a source file NameValidation in Identity project and add the following code

module NameValidation =
  let validateNameEmptiness createUserRequest =
    if (createUserRequest.Name <> null &&
          createUserRequest.Name <> String.Empty) then
      Success createUserRequest
    else
      Failure { Property = "Name"
                Message = "Name is required"}

  let validateNameLength createUserRequest =
    if (createUserRequest.Name.Length <= 50) then
        Success createUserRequest
    else
      Failure { Property = "Name"
                Message = "Name should not contain more than 50 characters"}

Hope these rules are self-explanatory. We are just validating the name for emptiness and length, and based on the result we are returning either the Success track or Failure track.

Next, add validation rules for Password. Similar to Name Validation add a source file with the name PasswordValidation and update it as below

module PasswordValidation =
  let validatePasswordEmptiness createUserRequest =
    if (createUserRequest.Password <> null &&
          createUserRequest.Password <> String.Empty) then
      Success createUserRequest
    else
      Failure { Property = "Password"
                Message = "Password is required" }

  let validatePasswordLength createUserRequest =
    if (createUserRequest.Password.Length <= 10) then
      Success createUserRequest
    else
      Failure { Property = "Password"
                Message = "Password should not contain more than 10 characters" }

  let validatePasswordStrength  =
    let specialCharacters = [ "*"; "&"; "%"; "$" ]
    let hasSpecialCharacters (str : String) =
      specialCharacters |> List.exists (fun c -> str.Contains(c))
    let errorMessage =
      "Password should contain atleast one of the special characters "
        + String.Join(",", specialCharacters)
    validate
      (fun createUserRequest ->
        hasSpecialCharacters createUserRequest.Password)
      "Password"
      errorMessage

In addition to the two validation rules that we have seen in NameValidation here we have added one more validation to verify the presence of special characters in the Password.

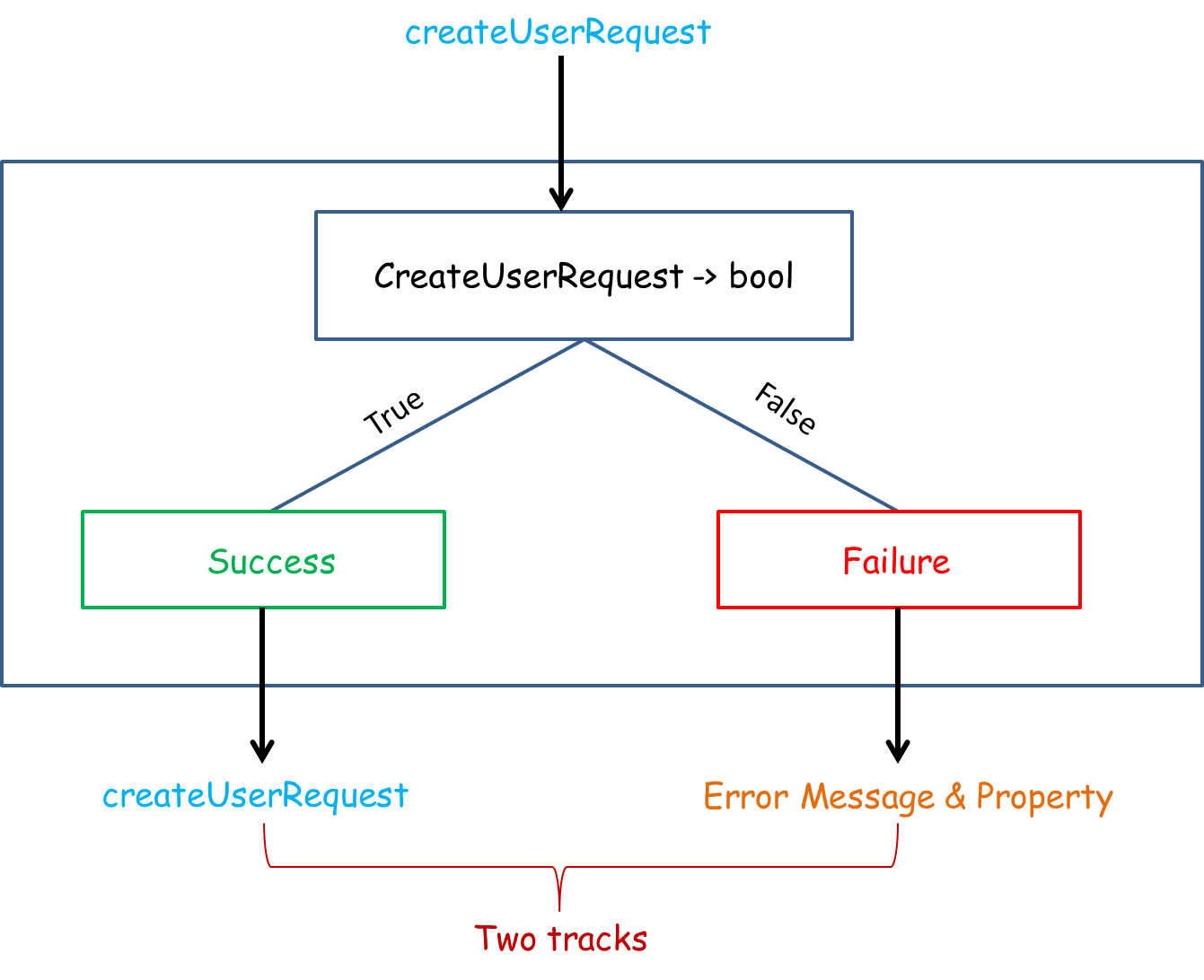

There is a pattern in all the validation rules that we have seen so far.

Let’s extract this pattern out of these validation rules and reduce the lines of code!

Create a new source file Validation and add the write this pattern as a function

module Validation =
  let validate isValid property message createUserRequest =
    if isValid createUserRequest then
      Success createUserRequest
    else
      Failure {Property = property; Message = message}

The validate function represents the outer box of the above diagram which takes four inputs

A function to validate the createUserRequest isValid which has the signature 'a -> bool that represents the validation rule
A string to show which property is invalid in the error property
A string representing the error message
The last is the incoming userCreateRequest createUserRequest

Note: Property and Message parameters are not shown in the diagram just to express the pattern clearly

We also need a small utility function to check the emptiness of the string. So add it in Validation

let isNonEmptyString str = str <> null && str <> String.Empty

With these functions in place we can refactor the validation rules that we written before.

module NameValidation =
  let validateNameEmptiness =
    validate
      (fun createUserRequest -> isNonEmptyString createUserRequest.Name)
      "Name"
      "Name is required"

  let validateNameLength  =
    validate
      (fun createUserRequest -> createUserRequest.Name.Length <= 50)
      "Name"
      "Name should not contain more than 50 characters"

module PasswordValidation =
  let validatePasswordEmptiness =
    validate
      (fun createUserRequest -> isNonEmptyString createUserRequest.Password)
      "Password"
      "Password is required"

  let validatePasswordLength =
    validate
      (fun createUserRequest -> createUserRequest.Name.Length <= 10)
      "Password"
      "Password should not contain more than 10 characters"

  let hasSpecialCharacters specialCharacters (str : String) =
    specialCharacters |> List.exists (fun c -> str.Contains(c))

  let validatePasswordStrength  =
    let specialCharacters = [ "*"; "&"; "%"; "$" ]
    let errorMessage =
      "Password should contain atleast one of the special characters "
        + String.Join(",", specialCharacters)
    validate
      (fun createUserRequest ->
        hasSpecialCharacters specialCharacters createUserRequest.Password)
      "Password"
      errorMessage

Much cleaner than the previous version, isn’t it?

The final validation is Email validation. It is very similar to the other validations that we have seen so far. One extra validation is verifying the uniqueness of the email id being used to register.

Create a new source file EmailValidation and add the validations

module EmailValidation =
  let isUniqueEmailAddr (userManager : UserManager<User>) emailAddr =
    let user = userManager.FindByName(emailAddr)
    user = null

  let isValidEmailAddress emailAddr =
    let emailAddrRegex =
      @"\A(?:[a-z0-9!#$%&'*+/=?^_`{|}~-]+(?:\.[a-z0-9!#$%&'*+/=?^_`{|}~-]+)" +
        "*@(?:[a-z0-9](?:[a-z0-9-]*[a-z0-9])?\.)+[a-z0-9](?:[a-z0-9-]*[a-z0-9])?)\Z"
    Regex.IsMatch(emailAddr, emailAddrRegex, RegexOptions.IgnoreCase)

  let validateEmailEmptiness =
    validate
      (fun createUserRequest -> isNonEmptyString createUserRequest.Email)
      "Email"
      "Email is required"

  let validateEmailUniqueness isUniqueEmailAddr createUserRequest =
    validate
      (fun createUserRequest -> isUniqueEmailAddr createUserRequest.Email)
      "Email"
      "Email address already exists"

  let validateEmailCorrectness =
    validate
      (fun createUserRequest -> isValidEmailAddress createUserRequest.Email)
      "Email"
      "Email address is invalid"

Putting all the validations together

So far we have seen individual property validation rules. It’s time to put all these pieces together and validate the CreateUserRequest as a whole.

Create a source file UserValidation and update it as below

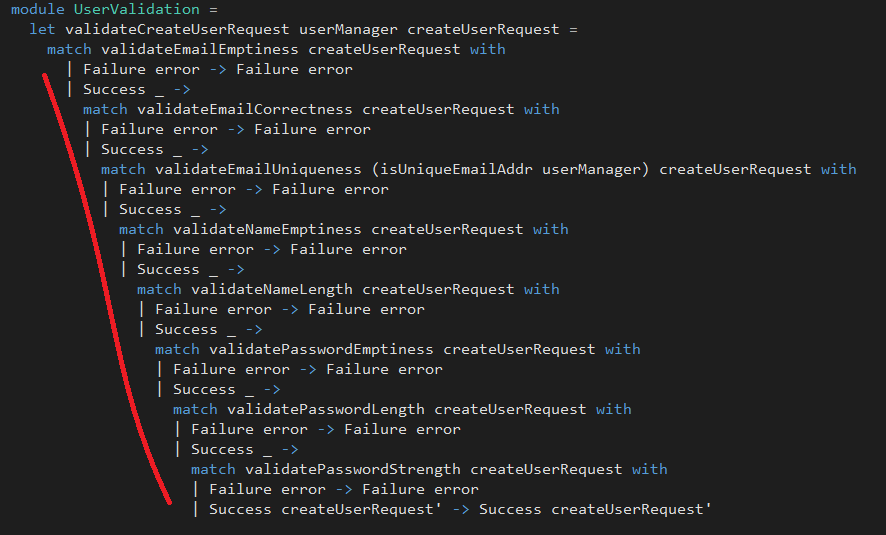

Wait.. Wait.. I know how do you feel here.. It’s too much code! Can we do it in a better way?

Using Railway Oriented Programming (ROP)

Thanks to ROP, we can make the mighty code smaller and more readable. I am going ahead with an assumption that you are aware of ROP. In case if you are not aware of it then watch this excellent presentation by Scott Wlaschin

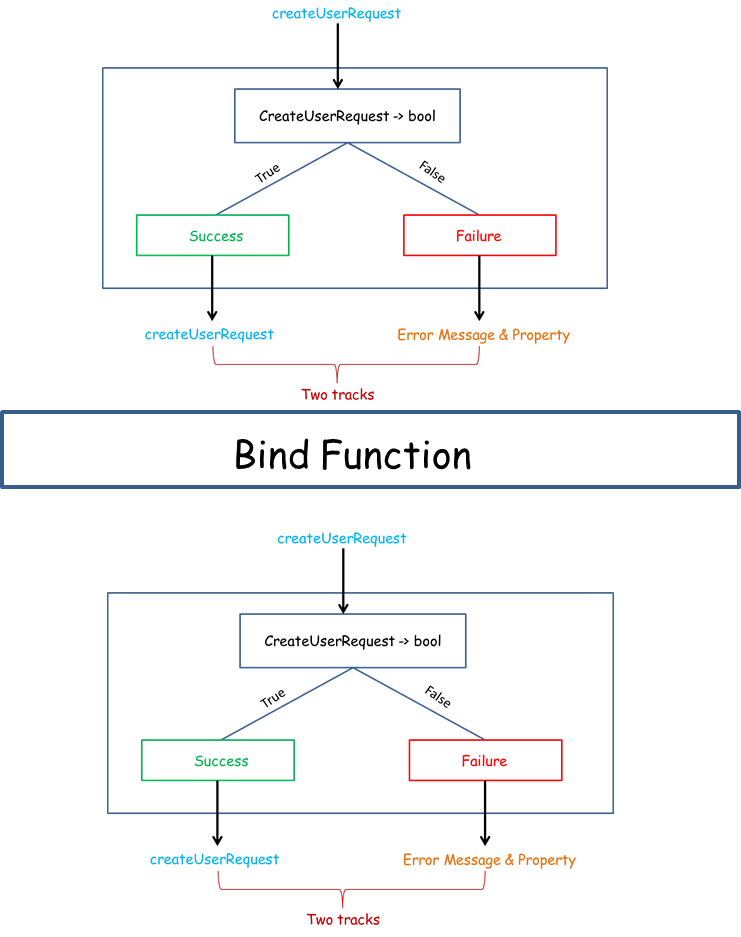

The crux of ROP is the bind function which composes two functions where the output type of one function is not matching with that of the input. If you want to know more this bind function, do visit this awesome blog post by Aditya. In this blog post he explains about the bind function under the title Monads

Let’s start by adding this bind function in the module Rop that we have already created.

let bind f1 f2 x =
  match f1 str with
  | Success x -> f2 x
  | Failure err -> Failure err

let inline (>>=) f1 f2 = bind f1 f2

The bind function here calls the function f1 with the given input x if it succeeds, then executes the second function f2 with x. In case if the execution of f1 resulted in failure then it just passes without executing the second function.

The infix operator >>= is an alias of bind function.

With the help of this bind function, we can rewrite the validateCreateUserRequest function in a better way as below

module UserValidation =
  let validateCreateUserRequest userManager  =
      validateEmailEmptiness
        >>= validateEmailCorrectness
        >>= validateEmailUniqueness (isUniqueEmailAddr userManager)
        >>= validateNameEmptiness
        >>= validateNameLength
        >>= validatePasswordEmptiness
        >>= validatePasswordLength
        >>= validatePasswordStrength

It’s awesome! Isn’t it? If you are still wondering what’s happening here! Watch the Scott’s presentation one more time.

Adding validation before saving

Now we have the validation infrastructure in place. So, let’s go ahead and add it before creating a new user in the backend. As part of this refactoring we are also going to do error handling of new user creation.

Create a new private function in UserStorage to create a new user with error handling

let private createUser' (userManager : UserManager<User>) createUserRequest =
  try
    let user = new User(Name = createUserRequest.Name,
                        UserName = createUserRequest.Email,
                        Email = createUserRequest.Email)
    let identityResult = userManager.Create(user, createUserRequest.Password)
    if identityResult.Succeeded then
      Success createUserRequest
    else
      let errors = String.concat "," identityResult.Errors
      Failure { Property = "";
                Message = errors}
  with
    | _ ->
      Failure { Property = "";
                Message = "An unexpected error happened while creating new user"}

Like validation rules defined before this new createUser' function is also outputs “two tracks”, Success if the user creation is successful others it outputs Failure. Because of this change in function signature
(UserManager<User> -> CreateUserRequest -> Result<CreateUserRequest>) we can fit this easily into the bind function.

Modify the existing CreateUser function to use this

let createUser (userManager : UserManager<User>) =
      validateCreateUserRequest userManager >>= createUser' userManager

Thanks to Partial application we have created new functions on the fly by passing only the partial parameters (UserManager in this case) and make it fit with less code.

Since we have changed the signature of the createUser function from UserManager<User> -> CreateUserRequest -> IdentityResult to UserManager<User> -> CreateUserRequest -> Result<CreateUserRequest> we need to change the Register action method in the AuthenticationController.

[<HttpPost>]
[<ValidateAntiForgeryToken>]
member this.Register(registerViewModel : RegisterViewModel) : ActionResult =
  let createUserRequest : CreateUserRequest = {
    Name = registerViewModel.Name;
    Email = registerViewModel.Email;
    Password = registerViewModel.Password
  }
  match UserStorage.createUser userManager createUserRequest with
  | Failure error ->
    this.ModelState.AddModelError(error.Property, error.Message)
    this.View(registerViewModel) :> ActionResult
  | Success createUserRequest' ->
    let user = userManager.Find(createUserRequest'.Email, createUserRequest'.Password)
    signin userManager base.Request user
    this.RedirectToAction("Index", "Home") :> ActionResult

That’s it, we are ready to go!

Summary

In this blog post we have seen how to add validations and error handling in fsharp using ROP. Though it is little hard to get this kind of functional thinking, it offers a great deal of expressiveness and flexibility to your codebase. Just like any other skills if you practice it for quite time you can also master it. You can find the source code associated with this step in the github repository

Step-7 Validation and Error Handling Using ROP
