Step-8 Adding Shopping Cart

This is step 8 of my blog series on Web Application Development in Fsharp using ASP.NET MVC

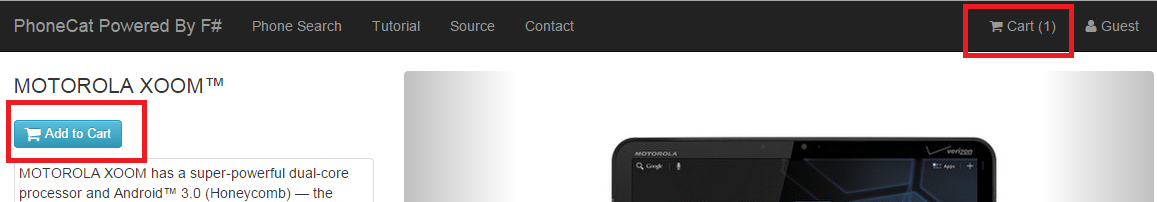

In the last blog post we have seen how to do validation and error handling in fsharp and in this blog post we are going to add shopping cart feature to the phone-cat application that we are developing in this blog series. To keep this blog post simple, we are going to see only adding an item to shopping cart. Remvoing an item from shopping cart is a straightforward implementation and I leave it to you as an exercise

The Shopping Cart Domain

Let’s start with defining the domain model for handling shopping cart. Create a source file ShoppingCart in the Domain project and add the following code

1
2
3
4
5
6
7
8
9
10
11
12

module ShoppingCart =

  type ProductId = string

  type Cart =
    | Empty
    | Active of ProductId List

  let addItem cart productId =
    match cart with
    | Empty -> Active [productId]
    | Active items -> Active (productId :: items)

The ProductId is an alias of string type represents the id of the phone.

The Cart is a Sum type represents the two possible states of Shopping Cart. The Cart would be either empty or contain product ids that has been added to the cart.

We have added a function which adds a product id to the cart. It just checks the state of the cart and based on the state it either creates the cart with Active state or appends the product id to the existing list.

Thanks to the strong fsharp type system, we have modeled the domain with less lines of code.

Persisting Shopping Cart

Now we have the domain logic to represent the shopping cart and adding items to it. The next step is persisting the cart. We can persist it anywhere as the domain model is persistent ignorant. To keep things simple, we will be persisting it in-memory.

As we did during the recommendation step we will be using a dictionary to store the cart with Asp.Net’s anonymousId as the key.

Create a source file CartStorage in the DataAccess project and update it as below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

module CartStorage =

  let private inMemoryStorage =
    new Dictionary<string, Cart>()

  let create anonymousId cart =
    inMemoryStorage.Add(anonymousId, cart)
    cart

  let update anonymousId cart =
    inMemoryStorage.Remove(anonymousId) |> ignore
    create anonymousId cart

  let get anonymousId =
    match inMemoryStorage.ContainsKey(anonymousId) with
    | true -> Some inMemoryStorage.[anonymousId]
    | _ -> None

The code is very straight forward to understand. It contains typical CRUD operations of a shopping cart using an in-memory dictionary object.

Shopping Cart Api

It’s time to code the api for the shopping cart. Let’s add a source file ShoppingCartController in the Web project and update it as below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

[<RoutePrefix("api/cart")>]
type ShoppingCartController
  (
    cart : Cart,
    updateCart : Cart -> Cart
  ) =
  inherit ApiController ()

  [<Route("")>]
  member this.Get() = cart

  [<HttpPost>]
  [<Route("add")>]
  member this.AddItem([<FromBody>]productId : string) =
    addItem cart productId |> updateCart

The ShoppingCartController has two dependencies.
1. Cart - Cart associated with the current session
2. updateCart - a function to update the cart

To keep it simple, I haven’t added error handling or validation here. The action method Get returns the cart and the action method AddItem adds the item to the cart and then update the cart in the storage.

Wiring things up

Now we have all the pieces to add shopping cart to our application and the final step is tying them together. As we did it in other steps we need to do it in the composition root. Open Infrastructure in the Web project and update it as below

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

type CompositionRoot
  (
    // ... Exisitng Code ...
  ) =
  interface IHttpControllerActivator with
    member this.Create(request, controllerDescriptor, controllerType) =
      // ... Exisiting Code ...
      else if controllerType = typeof<ShoppingCartController> then
        let anonymousID = HttpContext.Current.Request.AnonymousID
        let shoppingCart =
          match CartStorage.get anonymousID with
          | Some cart -> cart
          | None -> CartStorage.create anonymousID ShoppingCart.Empty

        let shoppingCartController = new ShoppingCartController(shoppingCart, CartStorage.update anonymousID)
        shoppingCartController :> IHttpController
      // ... Existing Code ...

Here before the creating an instance of ShoppingCartController we retrieve the anonymous id from the incoming request and get the cart associated with the anonymous id from the storage. In case if the cart is not available, we are creating one. For the update function, we pass the partially applied update function of CartStorage.

That’s it!!

The front-end code

In the front end, we just call the ShoppingCartController action methods using plain jQuery ajax methods and update the UI. Since it is out of the scope of this blog post I haven’t covered it here and you can find the code here.

Summary

In this blog post we have seen how to implement shopping cart in a web application written in fsharp. I leave some exercises for you to extend it to use some other storage and also to add validation and error handling. You can find the source code in the github phonecat repository.
